Product type: PZCT-2

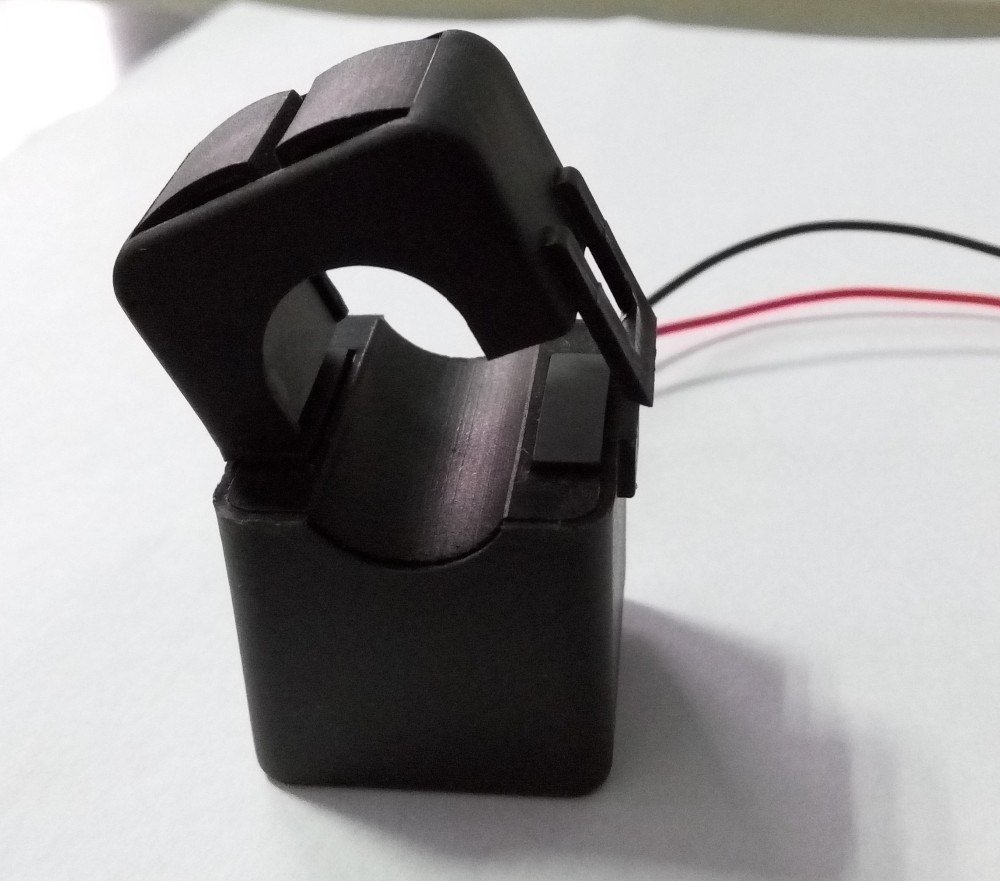

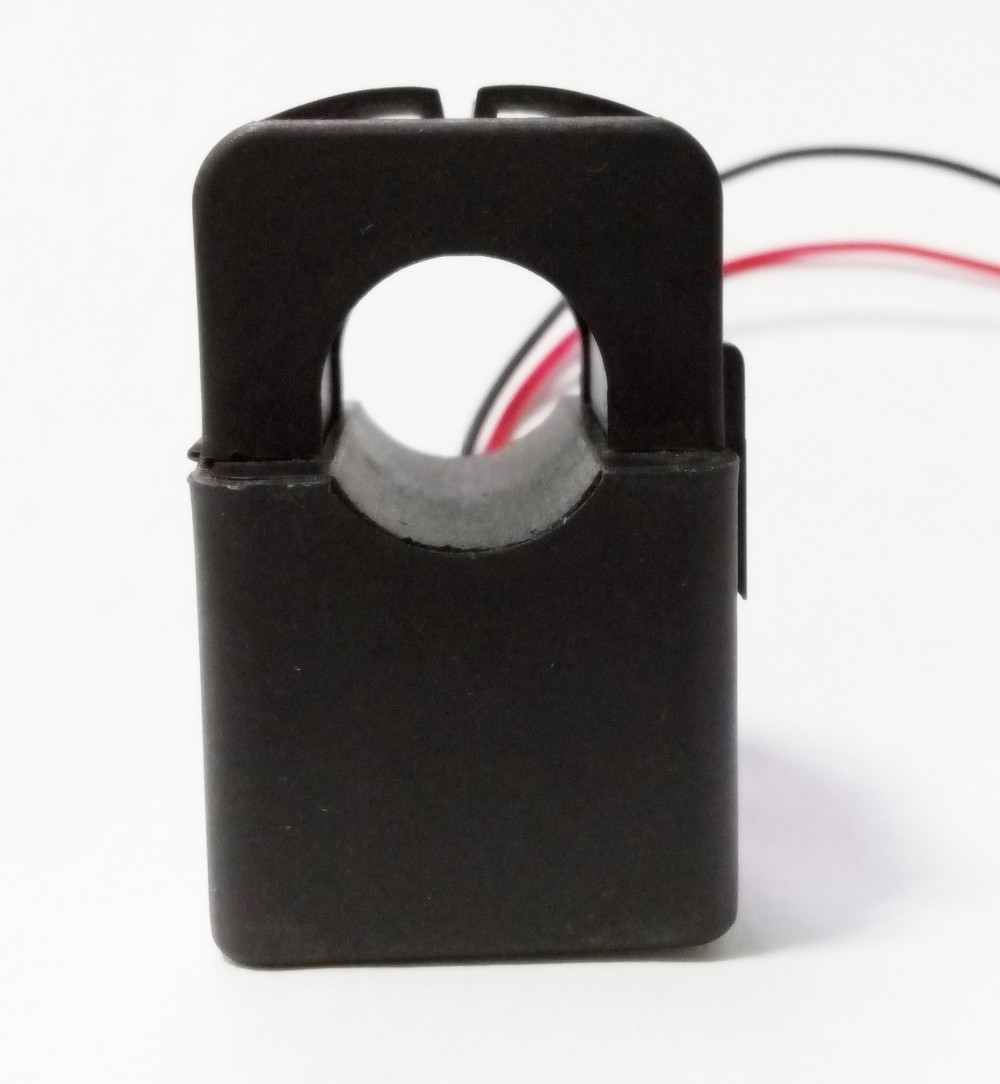

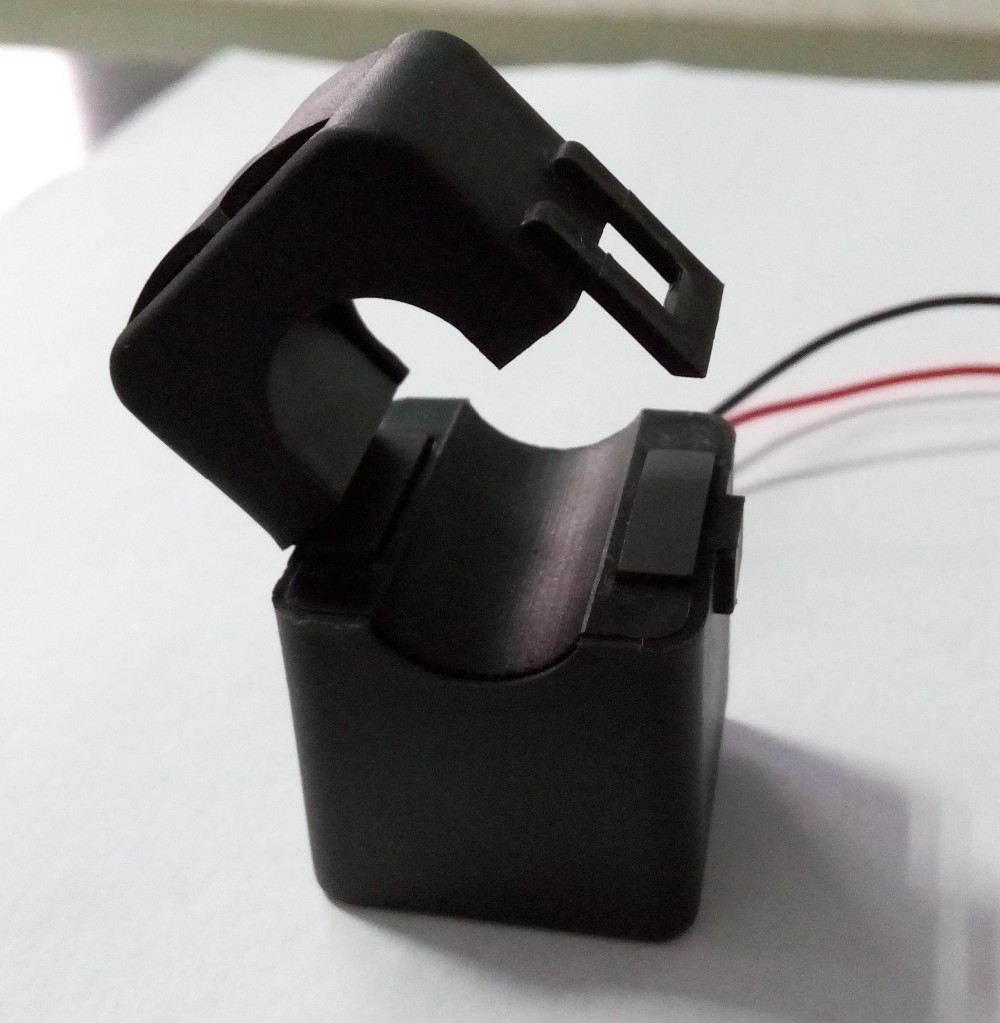

This is a mini split base current transformer, it’s the smallest one in the similar products (output 100MA), the diameter of inner hole is 16mm, the accuracy is ≤0.5 grade, using snap joint structure, it can be fixed to the cable directly through nylon ties, it has many advantage such as bijou, occupy small space, quick installation and so on.
A. Range of Application
1. The energy meter which mating this transformer, AC 220v, 380v power supply can both be applied.
2. When you fix the energy meter, you don’t need to cut off the power if you use this product.
1. Input coil is built-in; small and light, easy to install
2. Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability
1. The CT primary should be connected in series with the test current loop, the secondary should be as work in the short-circuit state
2. The secondary circuit is not allowed open circuit, so please do not install fuse.
