  • CE Certificate Digital Lithium Battery Tester LCD Meter Voltage/Current/ Discharge Resistance

CE Certificate Digital Lithium Battery Tester LCD Meter Voltage/Current/ Discharge Resistance

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Ningbo High-Tech Zone Peacefair Electronic Co., Ltd
[China]

Address
26# Maowu north road Jiangshan town Yinzhou District Ningbo Zhejiang
Phone
86-0574-88466521
Contact name
Laura

Quick Information

  • Brand Name: peacefair
  • Place of Origin: China
  • Model Number : PZEM-005

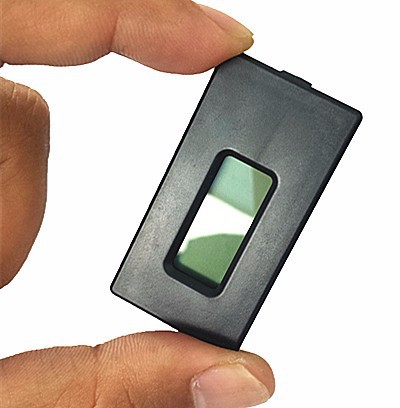

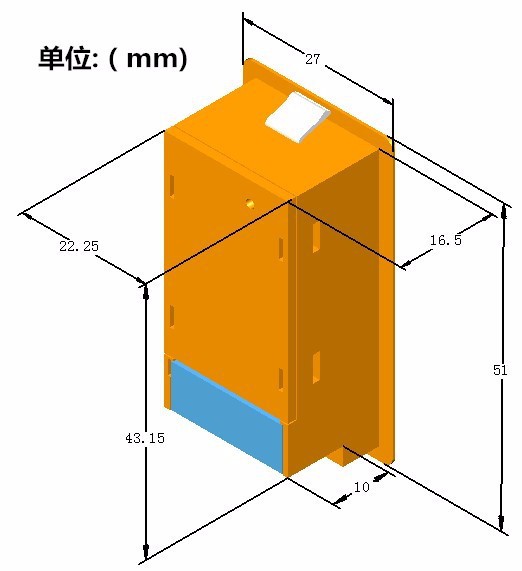

  • Size : 43mm*19mm*16mm
  • backlight color : white

Description

1. Product type

 PZEM-005

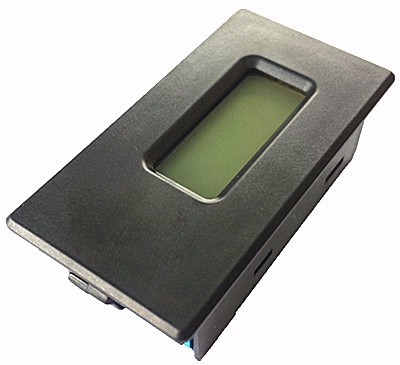

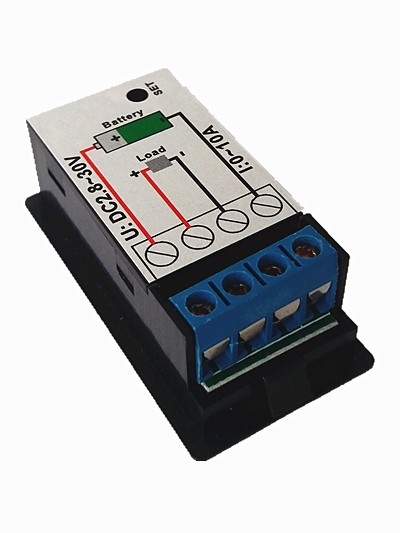

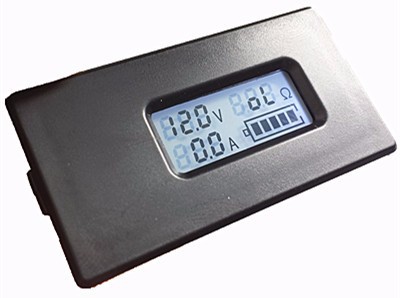

This tester is mainly used to display the battery voltage, battery level, load current and load resistance.



TB2i0fbdXXXXXbkXpXXXXXXXXXX_!!121163002

TB2O5TodXXXXXbAXXXXXXXXXXXX_!!121163002TB2stW7dXXXXXbZXpXXXXXXXXXX_!!121163002TB2Ys2idXXXXXXjXpXXXXXXXXXX_!!121163002TB2F9vbdXXXXXa2XpXXXXXXXXXX_!!121163002TB2Z9fwdXXXXXagXXXXXXXXXXXX_!!121163002TB2Vmq8dXXXXXbJXpXXXXXXXXXX_!!121163002TB2Buy9dXXXXXb2XpXXXXXXXXXX_!!121163002









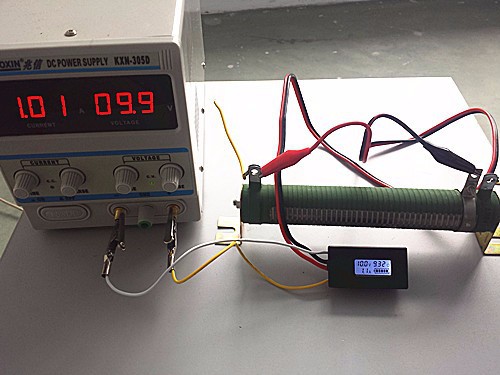

Wiring diagram

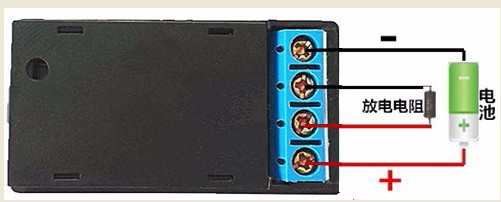

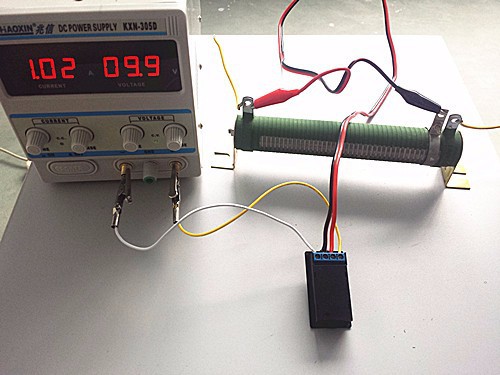

wiring diagram

Note: The discharge resistance is not included in the packing list. The buyer should perpare it by yourself.

2. Function Description

 2.1 Battery voltage measurement

 Measurement range: 2.8 ~ 26.0V.

 Resolution: 0.1V.

 Measurement accuracy: 2%.

2.2 Battery level measurement

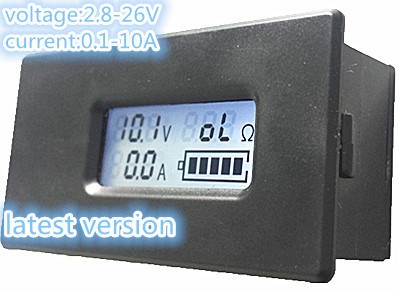

2.2.1 Battery level is shown through the battery level grid on the

   LCD screen and it has a total of five levels. Battery level is

   distinguished by the battery voltage.

 2.2.2 At full level it displays 5 grids, at 4/5 level it displays 4 grids,at 3/5 level it displays 3 grids, at 2/5 level it displays 2 grids,at 1/5 level it displays 1 grid,when comes the battery cut-off voltage it will display format 0 (only display battery frame).

 2.2.3 The voltage which is measured when power on is set to full battery level,and the battery cut-off voltage is set to zero level.

 2.2.4 The battery cut-off voltage can be set, the range is 2.8 ~ 26.0V, but not more than the full-scale voltage.

 2.2.5 The full-scale voltage of the battery can be set, the range is 2.8V ~ 30.0V, but not less than the cut-off voltage.

2.3 Load current measurement

Measurement range:0.1--10.0A

Resolution:0.1A

Measurement accruacy:2%

2.4 Load Resistance Measurement

Measurement range:0--999Ω,display “oL”when it is greater than 999Ω

Resolution: When the resistance is less than 10Ω, the resolution is 0.01Ω, when the resistance is greater or equal 10Ω but less than 100Ω,the resolution is 0.1Ω, when the resistance is greater or equal 100Ω but less than 1000Ω, the resolution is 1Ω.

Measurement accruacy:2%

2.5 Backlight control

 The backlight defaults to turn off state when power on, and you can control the backlight trun on or off by the key



3. Opterating instruction

Cut-off voltage of the battery and full-scale voltage settings

 Step 1:Long press the button for 3 seconds to enter the battery cut-off voltage and full-scale voltage setting state;

 Step 2: After entering the state, voltage  area  displays the current battery cut-off voltage flickeringly, and use the zero battery level symbol to indicate it is the cut-off voltage setting state (as shown in Figure 3.1); then you can shot press the button to do the adding one adjustment,and long press the button to do a quick adding one adjustment;

Step 3: When there is no button operation more than three seconds, it automatically enter into the full-scale voltage setting state;

 Step 4: After entering this state, voltage area displays the current full battery level voltage flickeringly, and use the full battery level symbol to indicate it is the full-scale voltage settings state(as shown in Figure 3.2); setting method is as same as the cut-off voltage;

Step 5: When there is no button opteration more than three seconds, it will automatically save, if there is no error after saving then it will quit automatically, if the value is incorrect or save incorrectly will display Err SAu 1 second, and exit.



4. Other notes

  Lithium battery is powered through LDO, the power supply voltage should greater than 2.8V.

 Working temperature

-10 °C--- +40°C

Package contents:

 1 * AC PEACEFAIR Digital Lithium  battery tester(the discharge resistance is not in the packing list. If you need it, please prepare it by yourself.)

We can also wholesale if you need a large quantity of item please contact us
