  • CE Certificate AC 80-260V Digital LCD Current Voltage Watt KWh Time 5in1 Panel Meter

CE Certificate AC 80-260V Digital LCD Current Voltage Watt KWh Time 5in1 Panel Meter

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Ningbo High-Tech Zone Peacefair Electronic Co., Ltd
[China]

Address
26# Maowu north road Jiangshan town Yinzhou District Ningbo Zhejiang
Phone
86-0574-88466521
Contact name
Laura

Quick Information

  • Brand Name: peacefair
  • Place of Origin: China
  • Model Number : PZEM-002
  • Accuracy Class : 1.0grade
  • Dimensions : 9.64cm*4.4cm*2.4cm
  • Display Type : Digital Only
  • Measuring Range : 0-20A
  • Operating Temperature : -10-60℃
  • Supply Voltage : 80-260V
  • backlight color : Blue

Description

Product Type: PZEM-002(V4.0)

A.      Function


1. Electrical parameter measurement function (voltage, current, active power, energy)

2. Running time function (records the load accumulated operating time).

3. Overload alarm function (over power alarm threshold backlight flashing to alarm).

4. Power alarm threshold preset function (can set power alarm threshold).

5. The reset function of energy and running time keys.

6. Backlight function.

7. Store data when power off (store the accumulated energy, running time, display items, the state of backlight on or off).

8. Large-screen LCD (display voltage, current, energy, active power, the accumulated running time)

B. Appearance and Key function description

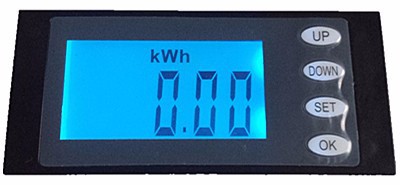

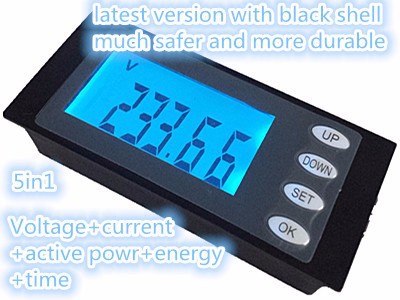

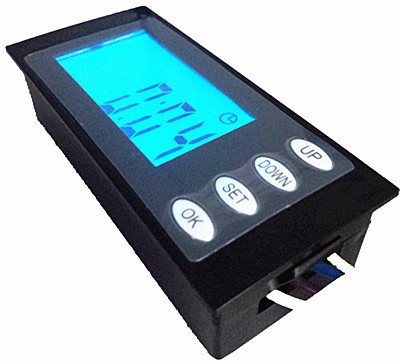

TB2irK2dFXXXXXLXXXXXXXXXXXX-121163002TB2egSKdFXXXXXCXpXXXXXXXXXX-121163002TB2lPiKdFXXXXXxXpXXXXXXXXXX-121163002TB28vGGdFXXXXaJXpXXXXXXXXXX-121163002
TB2AZaJdFXXXXXxXpXXXXXXXXXX-121163002TB2afKYdFXXXXaGXXXXXXXXXXXX-121163002TB2DlKMdFXXXXXgXpXXXXXXXXXX-121163002

The description of keys/LCD function

Key function

UP

1. In normal display state, short press UP key will reversed circularly display time, power, energy, current, voltage.

2. In power alarm threshold setting state, press the UP key will +1.

3. Short press the UP key will exit the reset state when energy and time are in the reset state.

DOWN

1. In normal display state, short press DOWN key will sequential circularly display voltage, current, energy, power, time.

2. In power alarm threshold setting state, press the DOWN key will -1.

3. Short press the DOWN key will exit the reset state when energy and time are in the reset state.

SET

1. In power display state, long press 3 seconds will enter into the power alarm threshold setting state

2. In energy or time display state, long press 3 seconds will enter into the energy or time reset state.

OK

1. In normal display state, short press OK key will turn on or off the backlight.

2. In power alarm threshold setting state, press OK key to switch the setting digits

3. In energy or time reset state, press OK key will clear the energy or time and quit the reset state


C. Precautions


1. This module is suitable for indoor, please do not use outdoor.

2. Applied load should not exceed the rated power.

3. Wiring order can’t be wrong.
4. It can't be used for inverter.

D. Specification parameters


1. Working voltage: 80 ~ 270VAC

2. Test voltage: 80 ~ 270VAC

3. Rated power: 20A/4400W

4. Operating frequency: 45-65Hz

5. Measurement accuracy: 1.0 grade

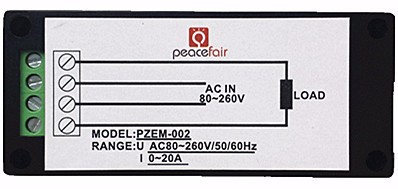

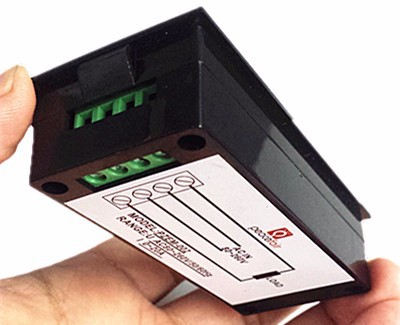

E. Wiring diagram
TB2fYWWdFXXXXaHXXXXXXXXXXXX-121163002

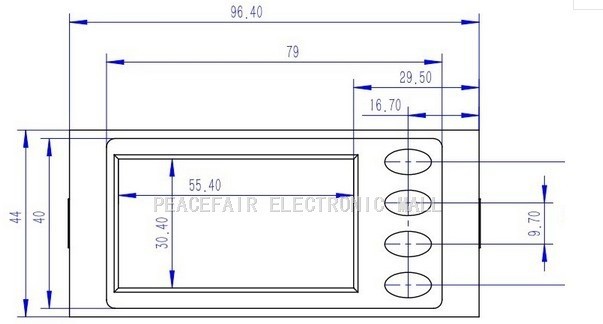

F. Dimension diagram
13

Note:

There are three types of power: active power (represents / unit W), reactive power (represents / unit Var), apparent power (S represents / unit VA).

And the power of our product is active power.

Active power is calculated as: P = U * I * cosφ, cosφ represents the power factor, for purely resistive loads (such as incandescent, heater, etc.) the power factor is generally close to 1, for inductive load and capacitive load, the power factor is between 0-1; so when you test the purely resistive load, the power(P) is substantially equal to or close to U * I; but when you test inductive or capacitive loads (such as refrigerators, washing machines, televisions, computers, etc.), P <U * I . As for the specific number is related to the power factor, for each appliance has different power factor, so please believe the value of our product.


Package Contents

100% new brand high quality

1pcs PEACEFAIR AC Digital LCD power meter  Voltage KWh time watt energy Volt Ammeter


We can also wholesale, if you need a large quantity of item please contact us
